Description

The working principle of the 3 way DSF electric hydraulic discharger unloaders are to drive the rotating shaft mechanism of the three-way distributor through the electric hydraulic linear actuator (push rod) to control the turnover of the flap and achieve the effect of material reversal.

The 3 way DSF electric hydraulic discharger unloader can directly connect the upper flange under the head funnel of the belt conveyor or at the feeding interface of other equipment.

It is generally used under conditions where the specific gravity of the pile is less than or equal to 2.8t/m, the abrasiveness is large, and the working environment is harsh.

Taking into account its large size and weight (thick liner), the upper flange cannot bear its own weight, and additional support must be added according to the actual situation.

The 3 way DSF electric hydraulic discharger unloader uses an electric hydraulic linear actuator (push rod) as a power source.

Because of its automatic overload protection performance, when the operation is blocked, the pressure in the oil circuit reaches the set limit, and the overflow valve accurately overflows to implement overload protection.

The motor will not burn out when running within the rated value.

When the pushing rod runs to the end of the set stroke, a self-locking mechanism is designed in the integrated block of the electro-hydraulic push rod oil circuit, the motor stops, and the piston rod is self-locked at this position and is in a pressure-holding state.

The 3 way DSF electric hydraulic discharger unloader can be used for material reversing and diverting processes.

And it is allowed to change direction when there is material flow through.

The 3 way DSF electric hydraulic discharger unloader can be used for material reversing and shunting process, and has the kinetic energy of the gate.

At the same time, it controls the function of material cutting or simultaneous circulation.

Technical Specification

Model Number3 Way DSF Electric Hydraulic Discharger Unloaders
Alloy MaterialsCarbon Structural Steel
Power OutputMax 2.2KW
Use Temperature≤150 ℃
OEM/ODMAs customer’s drawings request
Main DimensionsStandard Drawings
OEM/ODMAvailable
Installation Technical ParametersAs catalog show
ApplicationIt is widely used in industrial industries such as building materials, metallurgy, mining, electric power, coal, ore, chemical industry, etc
MOQ1 Set

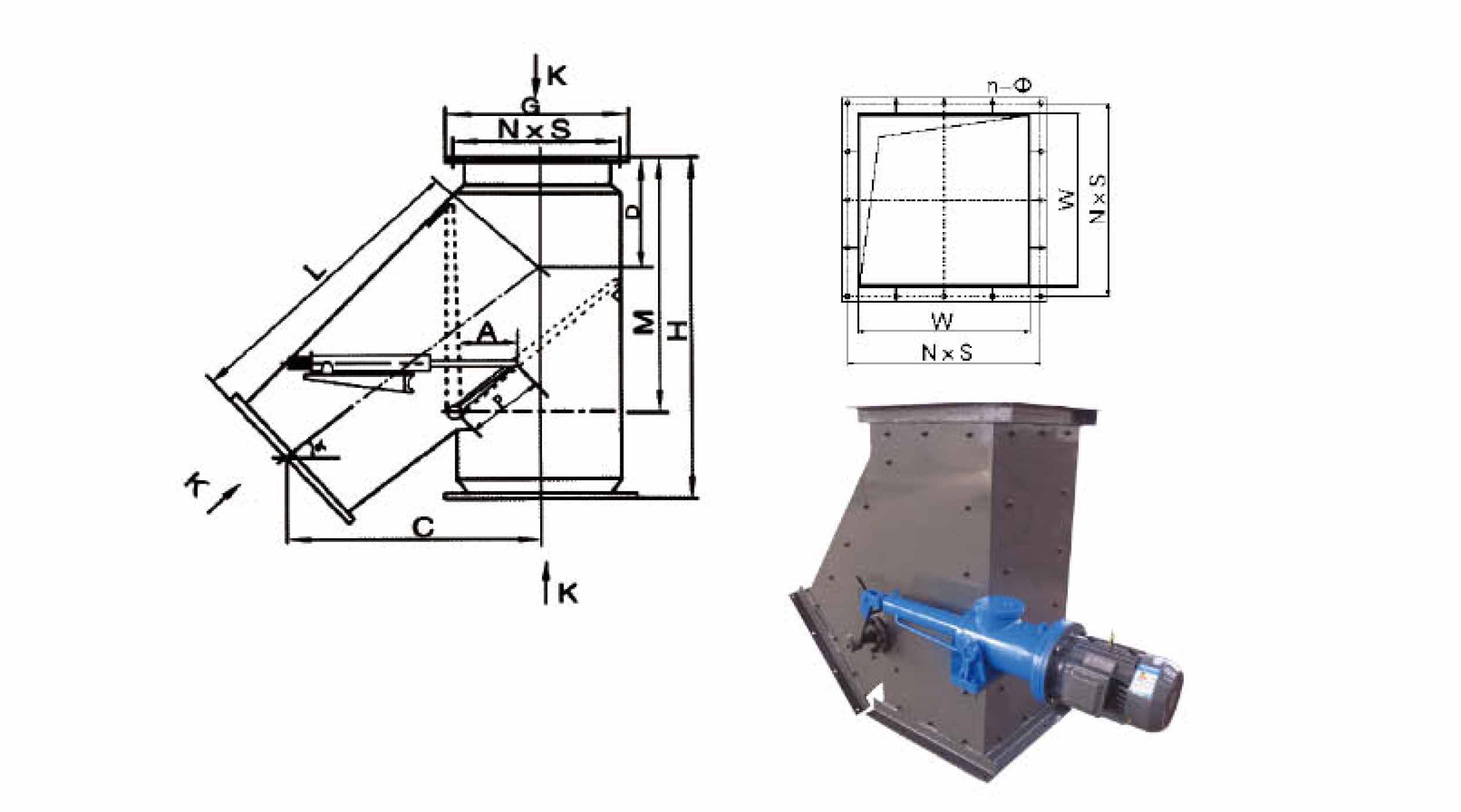

3-way-dsf-electric-hydraulic-discharger-unloaders-technical-drawing

FAQs

Q1.What Is 3 Way DSF Electric Hydraulic Discharger Unloaders Packaging?

A1.We have the professional packing team for your container shipment.
1. Standard export packaging:
Inner side packing, stretch film packing, EPE form packing, bubble bag packing+Outside packing wooden case;
2. Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
3. Other special packaging will be designed as customer’s request.

Q2.How To Choose China 3 Way DSF Electric Hydraulic Discharger Unloaders Manufacturers?

A2.As the one of leading electric hydraulic unloading discharger manufacturers in China, our engineers expert team are skilled at AUTO CAD, PROE, SOLID WORKS and UG softwares for your project design and production with rich experience.

You will get the high quality electric linear actuators with affordable price from us. 24/7 one-to-one free service and support, which is available free.

Q3.What Is MOQ Of 3 Way DSF Electric Hydraulic Discharger Unloader?

A3.If the mould is ready on stock, the MOQ will be less. 1 set quantity is workable.

If you need customized ones, the trial order MOQ is will be negotiated.

Q4.How To Buy The 3 Way DSF Electric Hydraulic Discharger Unloaders?
A4.
1. Consult: We will recommend the right models for you after being informed by your requirements.

2. Quotation: We will supply you with our detail quotation according to our consulted linear actuators with the best quality and price.

3. Process Evaluation: Buyers and our team engineers carefully evaluate and discuss all the details of the order to exclude any misunderstanding.

4. Placing The Order: If you have no doubts, we will send you the proforma invoice, and then we will sign a sales contract for your reference.

5. Production: We will arrange the new production as soon as receiving your signed sales contract and deposit payment. The updated news about production will be sent and informed to the buyer during the production period.

6. Inspection: The whole production procedure will be under regular inspection and strict quality control. The complete electric linear actuators and cylinders will be tested to make sure they can work very well before shipment.

7. Delivery: We will arrange the delivery as the related terms in the contract after the confirmation by the buyer.

8. Custom Clearance: We will supply and deliver all the linear actuators shipping documents to the buyer and ensure a smooth customs clearance when import.

9. Technical Support and Service: We will offer 24/7 professional technical support and service for every buyer. Email us or call us any time, any day. We’ll have your problem fixed in short time.

Q5.What Is The Delivery Time of The 3 Way DSF Electric Hydraulic Discharger Unloaders?

A5.Usually 15-20 days for new production, it is also according to total quantity.
